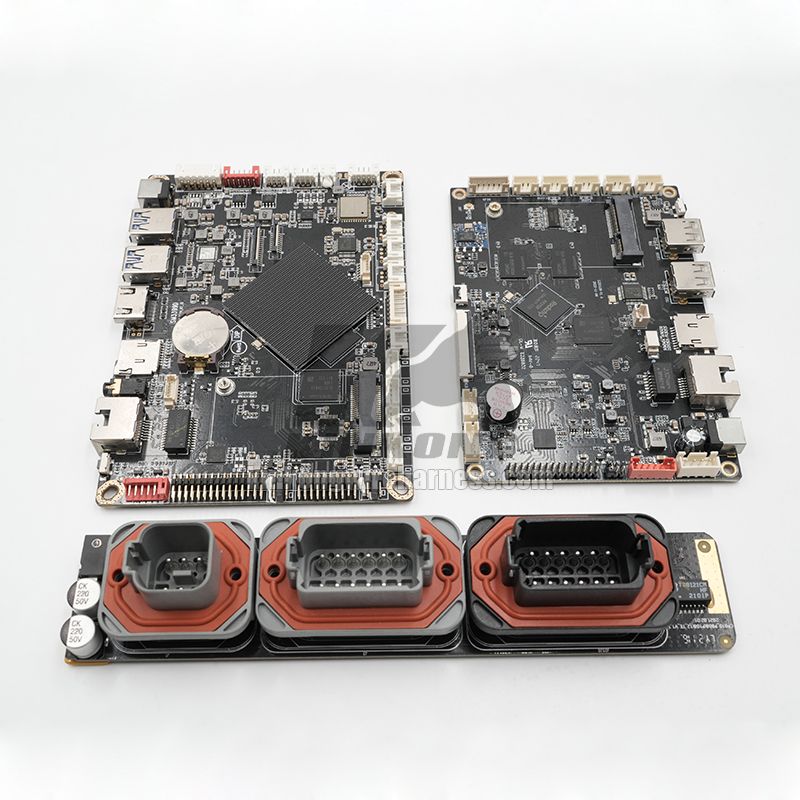

This customized Integrated PCB Solution features three rugged DEUTSCH compatible headers (including the DT15-12PA and DT15-6P series), providing a robust and reliable interface for complex industrial and automotive electrical systems. Designed by Kinkong to meet the demands of harsh environments, this board streamlines the transition from wire harnesses to internal ECU electronics, eliminating complex pigtail wiring and reducing potential failure points.

Inquire Now
  • Solution
  • Case Study



SpecificationsDetails
ModelCKK-PCBA-DT15
Intgrated Connectors2 x DT15-12PA(blk, grey each 1pc), 1x DT15-6P
CompatibilityDEUTSCH DT Series Plugs
Munting TypePC Board Mount
Temperature Range-55°C to +125°C
Sealing PotentialIP67 / IP68 (When mated correctly)
Contact SizeSize 16 (13 Amps per contact)
PCB DimensionsCustomizable
Vibration ResistanceDesigned for Heavy-duty Vibration (e.g., Agriculture, Construction)

Engineered for ResilienceKinkong’s integrated connector PCB assembly is the perfect solution for off-road and heavy-duty electrical systems. We don’t just solder connectors; we engineer interconnect solutions.


Key Advantages:

  • Integrated and Compact: By mounting the rugged DEUTSCH compatible headers directly onto the PCB, we provide a compact footprint ideal for space-constrained ECU housings.

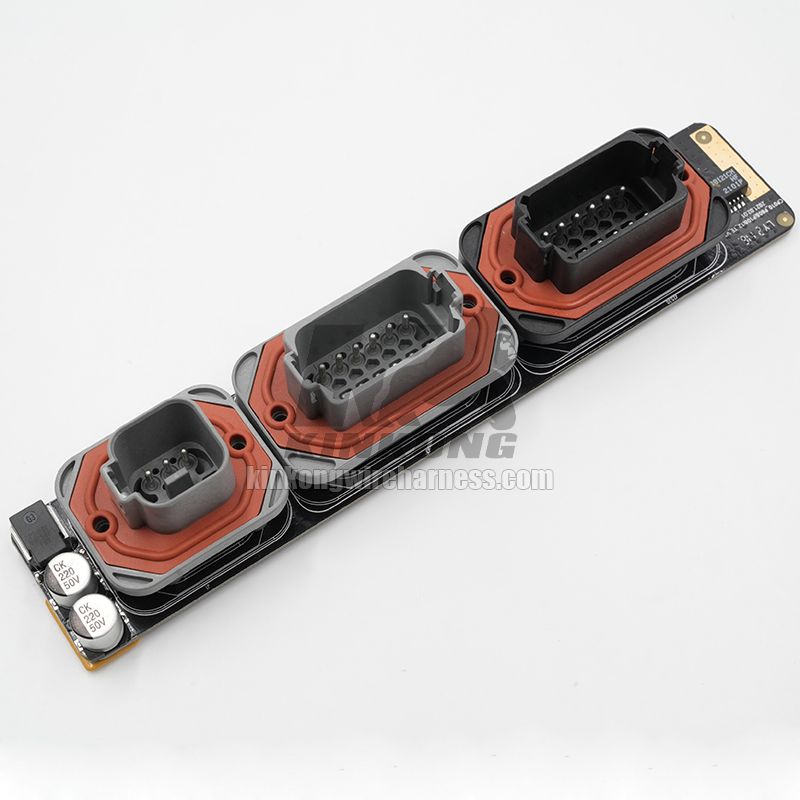

  • Superior Environmental Protection: The DT15 series headers feature enhanced silicone seals (the red component in your pictures) that provide an IP67/68 barrier against moisture, dust, and engine fluids when mated with the correct DEUTSCH plugs.

  • Optimized Manufacturability: Direct PCB mounting simplifies final ECU assembly by transforming complex wire harness connections into a standard PCB interface.

  • Automotive & Industrial Standard: Built with high-grade thermoplastics and durable copper alloy contacts, ensuring signal and power integrity in high-vibration applications.


Are you developing a custom ECU for a specialized agricultural machine or an automotive tuning module? Kinkong offers a comprehensive solution.

What We Can Provide:

  1. PCBA Customization: We can customize the PCB layout, add components like capacitors, and design the board thickness to meet your specific signal/power requirements.

  2. Connectors Choice: Choose between original DEUTSCH headers or high-quality Kinkong compatible alternatives (VAVE) to optimize your build costs without sacrificing quality.

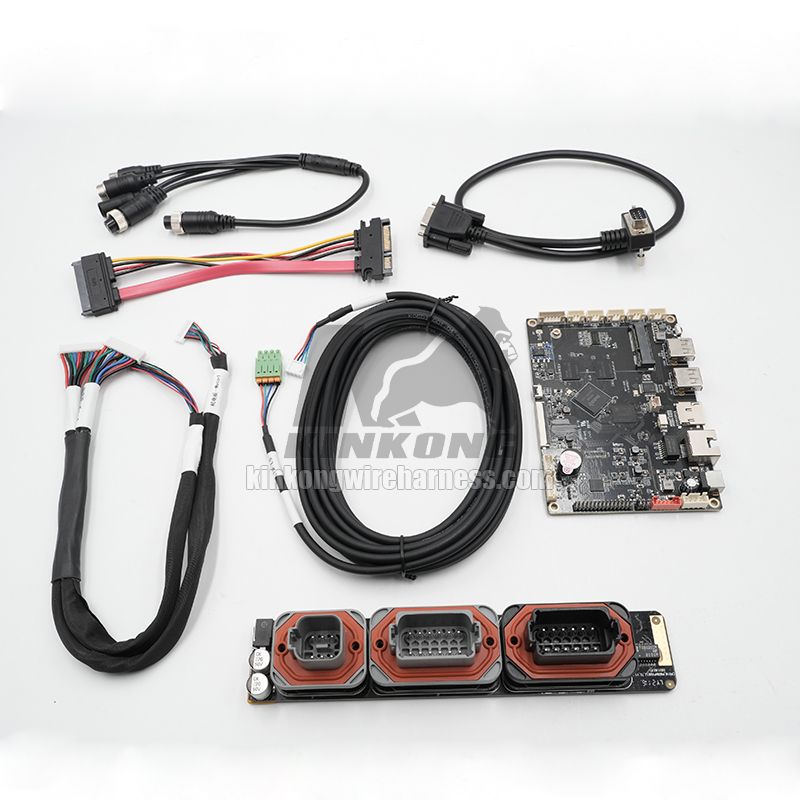

  3. Matching Harnesses: We can design and manufacture the matching wire harnesses (e.g., using DT06-12S plugs) for a true "Plug-and-Play" system.

  4. Rapid Prototyping: Ideal for 2-year development cycles (Design-in phase), allowing for fast engineering validation.
