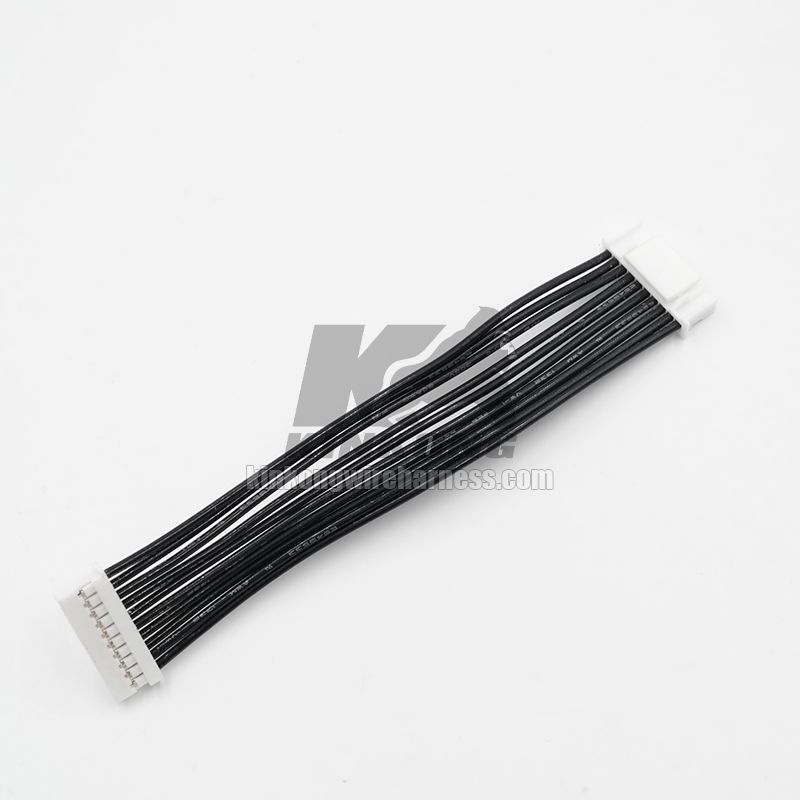

Custom 10-Pin PA2.0 to PA2.0 Internal Jumper Wire, High-Temperature Teflon (PTFE) Wire Harness for PCBA

This premium internal jumper wire is designed for compact PCBA-to-board connections where space and reliability are paramount. Featuring PA2.0-10P connectors on both ends, this assembly utilizes Teflon (PTFE) electronic wires, making it ideal for high-performance applications including automotive electronics, medical devices, and industrial controllers.

Unlike standard PVC cables, the Teflon insulation provides superior thermal stability, chemical resistance, and exceptional dielectric properties, ensuring signal integrity in the harshest environments.

Inquire Now

Solution
Case Study

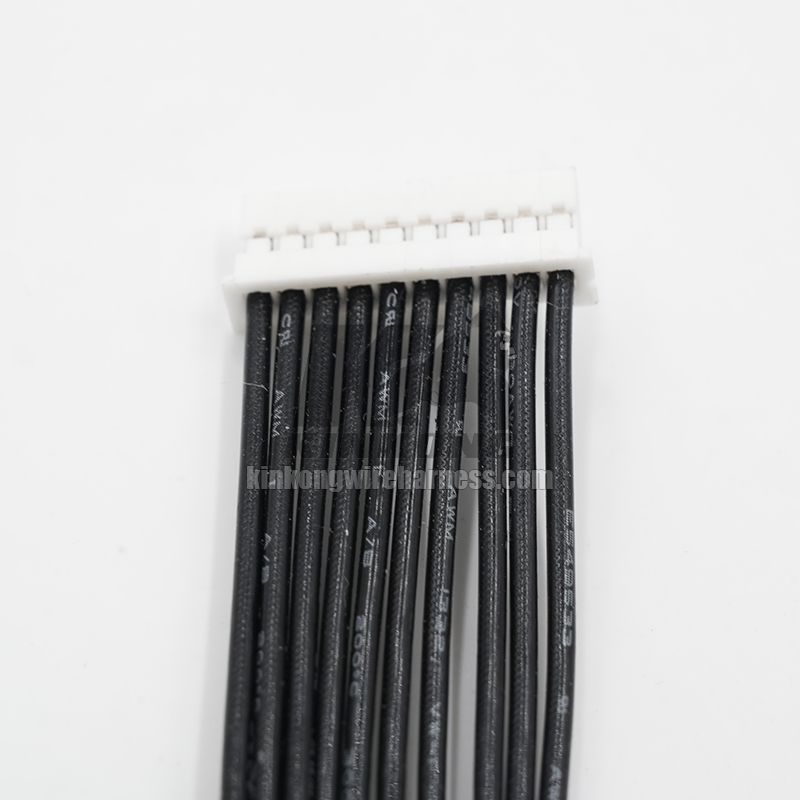

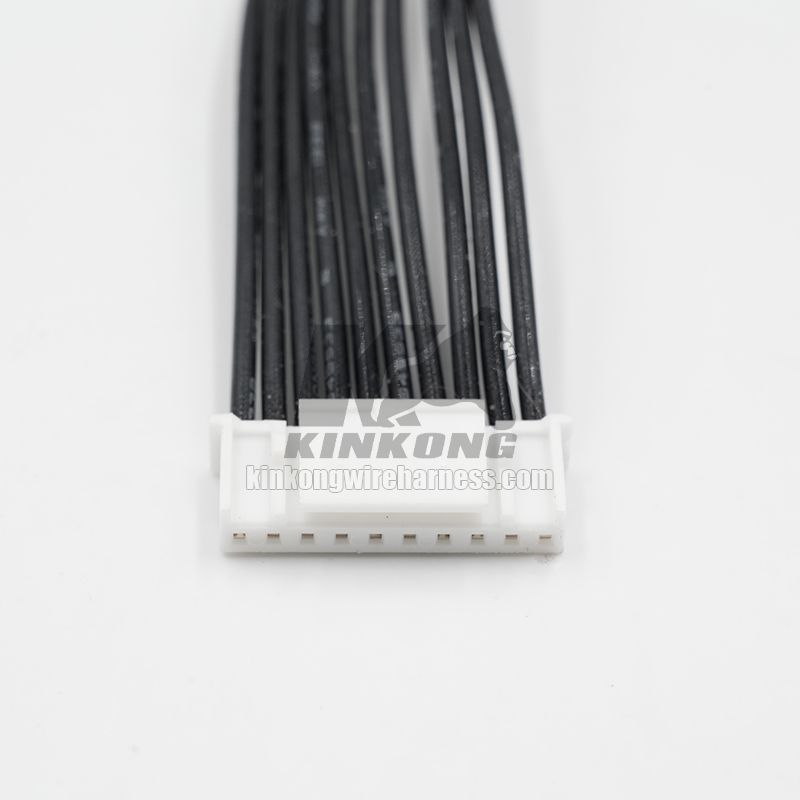

Connector A: PA2.0-10P (2.0mm Pitch, Housing with Secure Lock).
Connector B: PA2.0-10P (2.0mm Pitch).
Wire Type: High-Temperature Teflon (PTFE) UL-certified electronic wire.
Wire Gauge: Typically 24AWG - 28AWG (Customizable).
Temperature Range: -60°C to +200°C.
Voltage Rating: 250V AC/DC.
Pin Configuration: 10-Pin 1-to-1 Straight Through (or Custom Pinout).
Compliance: RoHS, REACH, IATF 16949 Standard.

In many PCBA designs, standard PVC wires often fail due to soldering heat or high-temperature operating environments, leading to insulation shrinkage or melting.

KINKONG’s Solution:

Heat Resistance: By adopting Teflon (PTFE) insulation, we eliminate the risk of insulation degradation during high-speed assembly or near heat-generating components on the PCB.
Space Efficiency: The 2.0mm pitch PA series connector offers a compact footprint while maintaining a secure mechanical lock against vibration.
Customization: We provide bespoke lengths and pin-out configurations to match specific internal layout requirements, reducing cable clutter and optimizing airflow within the enclosure.
Signal Reliability: The high-purity copper core combined with precision crimping technology ensures ultra-low contact resistance for sensitive data or power transmission.
